Point Type Combustible Gas Detector Fixed Gas Detector Factory Gas Safety Monitoring

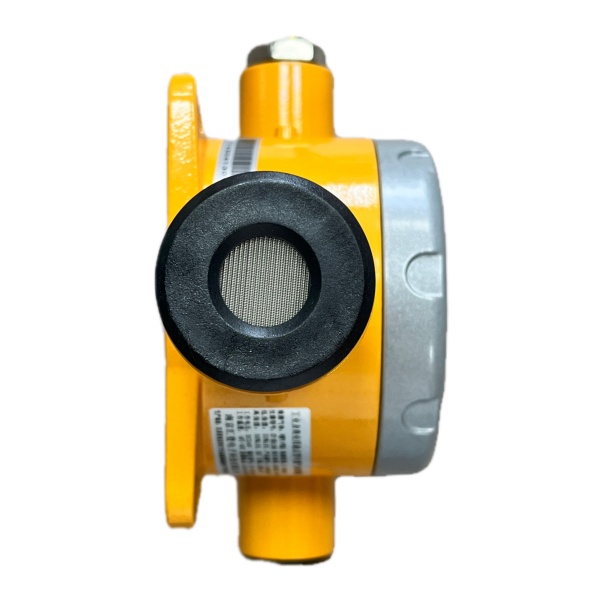

GT.HD1100 point gas detector is an intelligent transmitter that can continuously monitor the gas environment 24 hours a day in real time. The products are mainly used for the detection, display and alarm of the gas environment in petroleum, chemical, shipbuilding, steel and other industrial sites.
GT-HD1100 point gas detector adopts imported sensors. According to the different types and characteristics of the detected gas, the sensor has the characteristics of high sensitivity, fast response, long life and so on. The instrument adopts flameproof design, conforms to the provisions of GB15322.1-2019, and has obtained the test report and explosion-proof certificate issued by the designated national explosion-proof inspection agency. The instrument adopts three-wire system (4~20mA) or RS485 standard signal output, which can be used jointly with the company's gas alarm controller to achieve remote gas detection and alarm control, and can also be directly connected to the DCS control system.
Advanced microprocessor technology, high working stability
Imported sensors, fast reaction speed, high measurement accuracy
explosion-proof structure design, die-cast aluminum shell
DC power supply
The range can be customized according to demand
Output signal can be selected according to actual demand
Optional integrated explosion-proof sound and light alarm lamp
Low maintenance costs
Basic Info.
A variety of combustible gases can be measured. If you have any need for a gas detector, please contact us for further discussion.
Test performance and working parameters
| Zero drift | <±2%FS |
| Detection mode | Diffused |
| Output signal | Multi-wire (4mA~20mA) or bus (RS485) |
Working condition
| Operating voltage | 24V DC |
| Operating temperature | -10℃~50℃ |
| Ambient humidity | <93%RH |
| Environmental requirement | No shock, no vibration, no strong electromagnetic interference |
Other parameters
| Exterior structure | Die-cast aluminum housing |
| External dimension | 180mmx156mmx65mm |
| Explosion-proof form | Flameproof intrinsically safe type |
| Class of protection | IP65 |
Requirements for connecting cables
| Communication mode | Cable requirement |
| 4~20 mA signal | Three-core cable with a diameter of not less than 1.0mm |
| RS485 signal | Four core shielded cable (RVVP), wire diameter is not less than 1.5mm |
| Relay signal | Two core cable, diameter not less than 1.0mm |
Signal transmission distance: less than 1000 meters.
The actual transmission distance of the signal is related to the field wiring condition and the cable quality.
A variety of combustible gases can be measured. If you have any need for a gas detector, please contact us for further discussion.
Why Choose Us?
1.FULL PRODUCT RANGE
We can meet the various needs of customers, to provide you with all kinds of life saving,firefighting products and related.
2.CUSTOMIZED SERVICE
We have flexible production and supply capabilities to meet customer specific requirements and standards.
3.SUPPLY CHAIN INTEGRATION
We have established an efficient and stable supply chain network to ensure timely delivery and reliable quality.
4.GLOBAL COVERAGE
We have established partnerships on a global scale, with international business vision and resource integration capabilities.
Color screen pump suction gas detector——A portable high-precision gas detector equipped with an integrated miniature sampling pump; the instrument comes standard with a 3000-data storage function, allowing users to review historical data through data lists or curve graphs. Optional large-capacity SD card data storage function enables users to read historical records from the SD card via a computer for printing, exporting, and analysis. The detector accurately measures gas concentrations, providing users with comprehensive safety assurance. Utilizes original imported high-precision sensors. Integrated miniature sampling pump with ten adjustable suction levels. Built-in storage for up to 3000 historical data points, viewable through data lists or curve graphs. Color LCD display technology for showing gas name, units, concentration value, maximum value, time, and other parameters. Supports easy toggling between Chinese and English operation interfaces. Rapid switching between gas concentration units PPM and mg/m3 for display. Optional SD card data storage: 1. Supports historical data storage of up to 32GB. 2. Convenient continuous or segmented storage with adjustable storage interval times. 3. Equipped with professional visualization data analysis software.
Read More
Portable gas detector equipped with imported catalytic combustion gas sensor, is a portable detection and alarm equipment focusing on the detection of flammable and explosive gases in the air. It has the functions of high definition LCD display and sound and light alarm, which can ensure the detection of flammable gas in harsh working environment. Product Characteristics High precision, high stability gas sensor. Lattice liquid crystal display, can simultaneously display gas type, unit, measurement value, time, etc. Support voice broadcast of excessive gas concentration, battery undervoltage and other content. Large capacity lithium battery power supply, can carry out long-term continuous operation. Support English and Chinese operation interface, easy to switch. With data storage function, storage interval is adjustable (optional). USB interface high-speed data transmission, can download and print data (optional). Explosion-proof design, safe use. High strength ABS engineering plastic, waterproof, anti-slip, dust-proof, explosion-proof.
Read More
Product Description The gas leak detector is a kind of instrument which can detect the leak in real time by installing the high precision sensor in the front end of the universal tube. The instrument uses a 2.4 inch dot matrix LCD screen to display real-time sampling data, and can switch the operation interface in Chinese and English. Built-in large capacity lithium battery, can be used for a long time; With fast zero correction function; Optional data storage function, read history records through the computer, print, export and analysis.
Read More

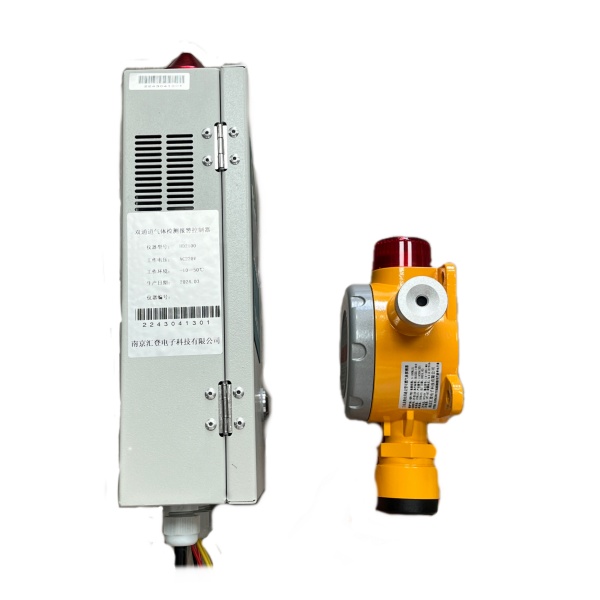

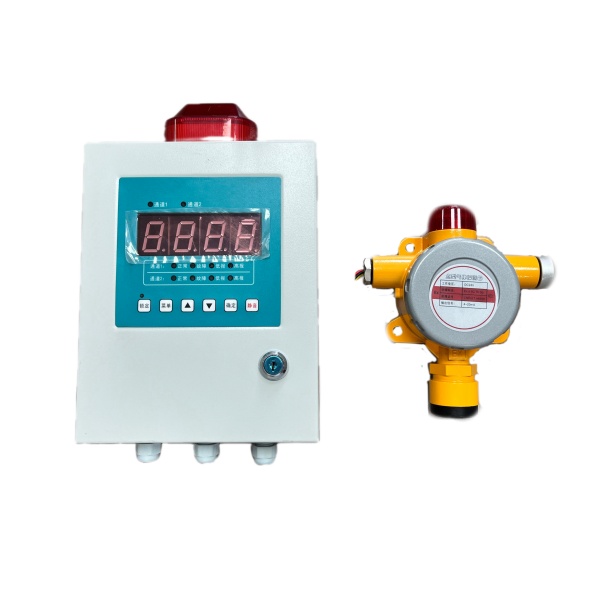

The gas detection and alarm controller adopts advanced microprocessor technology, which has the advantages of high sensitivity, fast response speed and stable operation. The digital tube displays the gas concentration value detected by the transmitter in real time. It has two audible and visual alarm functions, such as high and low report, and can be connected to linkage equipment and signal output. Advanced microprocessor technology Reliable and stable operation, high measurement accuracy High brightness LED digital tube display The range, accuracy, unit, high report, low report and display of each channel can be set separately AC power supply Sound, light alarm, lock screen, noise reduction function Strong versatility, a variety of input and output signals to choose from Low maintenance costs
Read More
