Multi Gas Detector Color Screen Pump Suction Gas Detector

Multi Gas Detector Color Screen Pump Suction Gas Detector

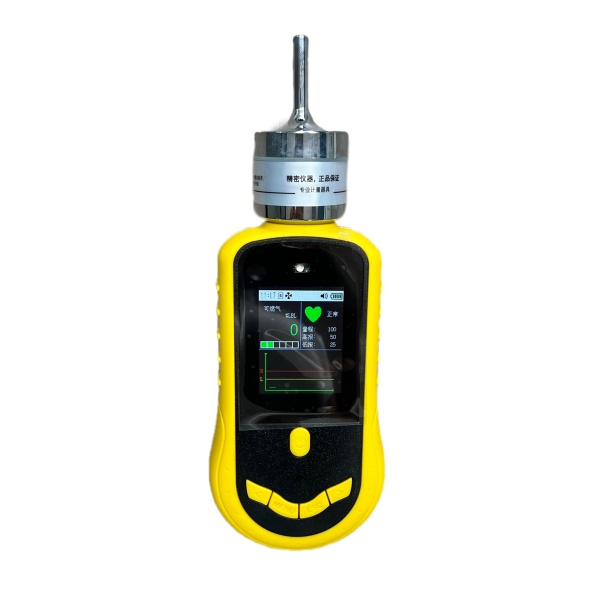

Color screen pump suction gas detector——A portable high-precision gas detector equipped with an integrated miniature sampling pump; the instrument comes standard with a 3000-data storage function, allowing users to review historical data through data lists or curve graphs. Optional large-capacity SD card data storage function enables users to read historical records from the SD card via a computer for printing, exporting, and analysis. The detector accurately measures gas concentrations, providing users with comprehensive safety assurance.

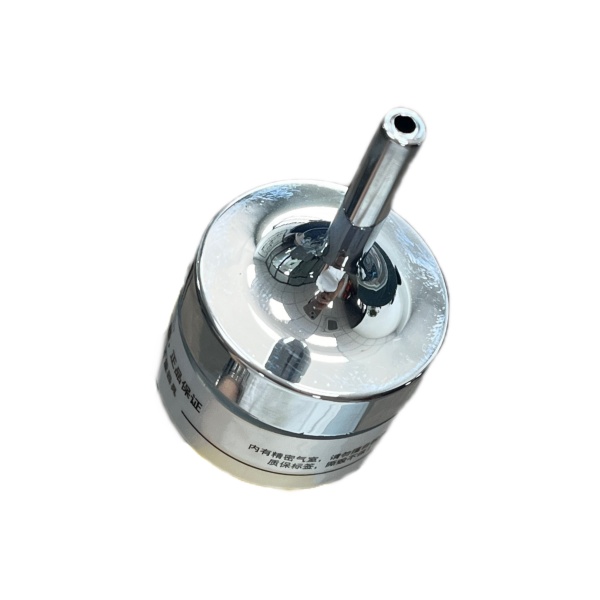

Utilizes original imported high-precision sensors.

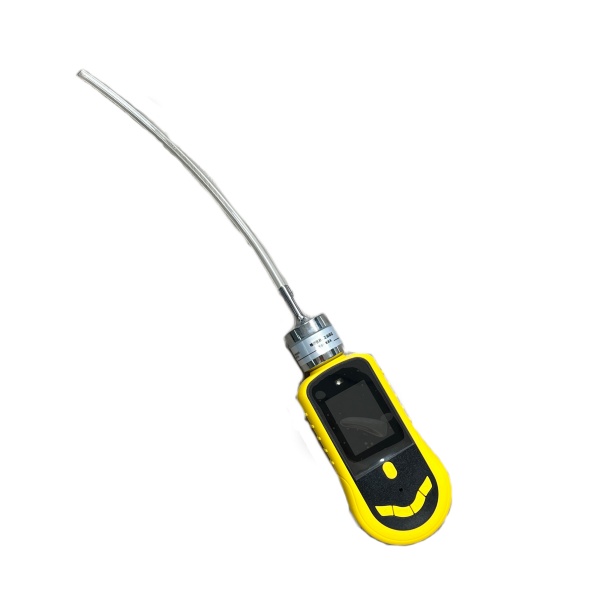

Integrated miniature sampling pump with ten adjustable suction levels.

Built-in storage for up to 3000 historical data points, viewable through data lists or curve graphs.

Color LCD display technology for showing gas name, units, concentration value, maximum value, time, and other parameters.

Supports easy toggling between Chinese and English operation interfaces.

Rapid switching between gas concentration units PPM and mg/m3 for display.

Optional SD card data storage:

      1. Supports historical data storage of up to 32GB.

      2. Convenient continuous or segmented storage with adjustable storage interval times.

      3. Equipped with professional visualization data analysis software.



Basic Info.

A variety of combustible gases can be measured. If you have any need for a gas detector, please contact us for further discussion.

  • Sensor life 24 months
    Sensor type acceleration type
    Battery 7.4V lithium-ion
    Measurement accuracy:<±3%(F.S)
    Display Color LCD
    Operating language English/Chinese
    Working temperature -40℃~70℃
    Working humidity 0~95%RH
    Alarm mode: sound, light, vibration
    Working time 100 hours (pump turned off)
    Size 205*75*32mm
    Weight 300g

Detection gas

Oxygen (O2) Combustible Gas (Ex) Carbon Monoxide (CO) Hydrogen Sulfide (H2S) Sulfur Dioxide (SO2) Nitric Oxide (NO) Nitrogen Dioxide (NO2)
Chlorine (Cl2) Formaldehyde (CH2O) Ammonia (NH3) Hydrogen (H2) Hydrogen Cyanide (HCN) Hydrogen Chloride (HCl) Ozone (O3)
Phosphine (PH3) Chlorine Dioxide (ClO2) Ethylene Oxide (C2H4O) Silane (SiH4) Hydrogen Fluoride (HF) Fluorine (F2) Phosgene (COCl2)
Nitrogen (N2) Tetrahydrothiophene (C4H8S) Methane (CH4) Toluene (C7H8) Odorant Methanethiol (CH4S) Butanone (C4H8O)
Acetaldehyde (C2H4O) Acetylene (C2H2) Cyanide Butadiene (C4H6) Carbon Dioxide (CO2) Total Volatile Organic Compounds (TVOC Sulfur Hexafluoride (SF6)
Carbon Disulfide (CS2) Nitrogen Oxides (NOX) Arsine (AsH3) Bromomethane (CH3-Br) Acetic Acid (CH3COOH)



We can offer portable gas detector, online gas detector, 1 sensor built-in gas detector, 2 in 1 multi gas detector, 3 in 1 multi gas detector or 4-5 sensors built-in 1 detector, up to 18 in 1 multi gas detector, so if you have any need of the gas detector, kindly contact us for further discussion.



Why Choose Us

1.FULL PRODUCT RANGE

We can meet the various needs of customers, to provide you with all kinds of life saving,firefighting products and related.

2.CUSTOMIZED SERVICE

We have flexible production and supply capabilities to meet customer specific requirements and standards.

3.SUPPLY CHAIN INTEGRATION

We have established an efficient and stable supply chain network to ensure timely delivery and reliable quality.

4.GLOBAL COVERAGE

We have established partnerships on a global scale, with international business vision and resource integration capabilities.







leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

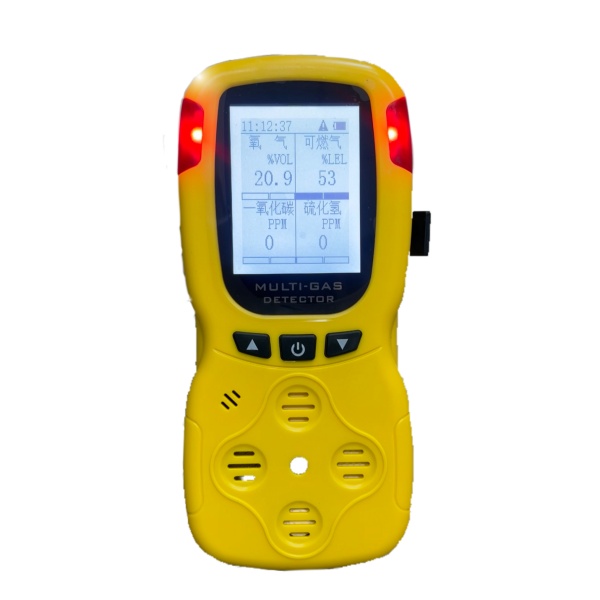

Portable Gas Detector Oxygen Combustible Gas Carbon Monoxide Hydrogen Sulfide
Portable Gas Detector Oxygen Combustible Gas Carbon Monoxide Hydrogen Sulfide New Good Price

Portable gas detector equipped with imported catalytic combustion gas sensor, is a portable detection and alarm equipment focusing on the detection of flammable and explosive gases in the air. It has the functions of high definition LCD display and sound and light alarm, which can ensure the detection of flammable gas in harsh working environment.   Product Characteristics High precision, high stability gas sensor. Lattice liquid crystal display, can simultaneously display gas type, unit, measurement value, time, etc. Support voice broadcast of excessive gas concentration, battery undervoltage and other content. Large capacity lithium battery power supply, can carry out long-term continuous operation. Support English and Chinese operation interface, easy to switch. With data storage function, storage interval is adjustable (optional). USB interface high-speed data transmission, can download and print data (optional). Explosion-proof design, safe use. High strength ABS engineering plastic, waterproof, anti-slip, dust-proof, explosion-proof.

Read More

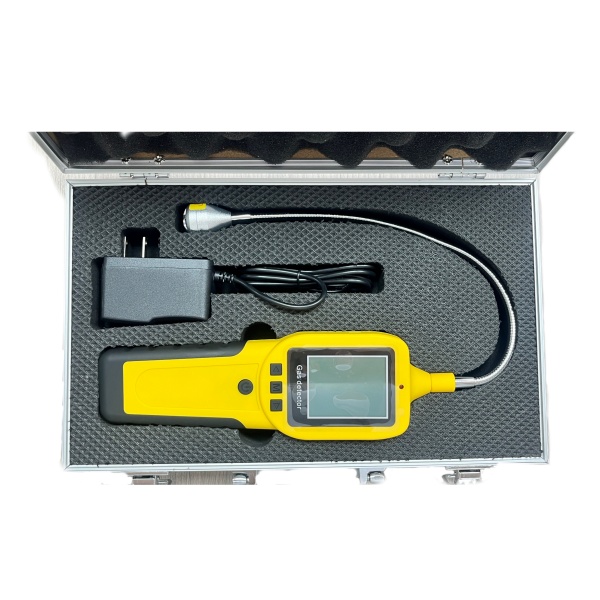

gas leak detector system
Combustible Portable Gas Leak Detector(0-10000ppm)

Product Description The gas leak detector is a kind of instrument which can detect the leak in real time by installing the high precision sensor in the front end of the universal tube. The instrument uses a 2.4 inch dot matrix LCD screen to display real-time sampling data, and can switch the operation interface in Chinese and English. Built-in large capacity lithium battery, can be used for a long time; With fast zero correction function; Optional data storage function, read history records through the computer, print, export and analysis.

Read More

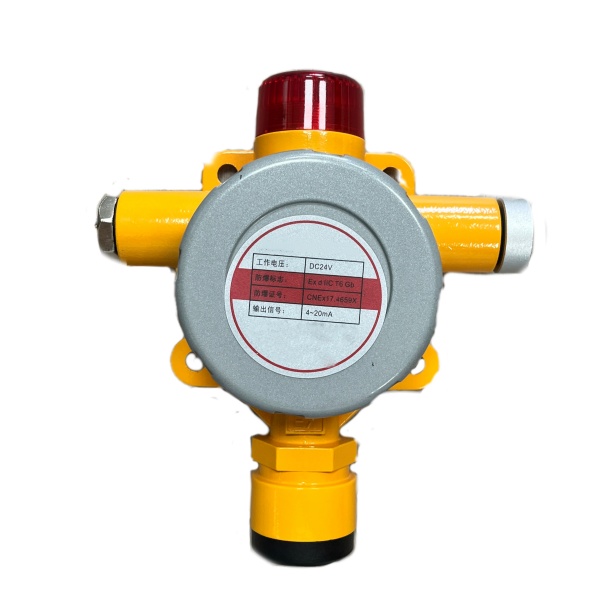

Point Type Combustible Gas Detector Fixed Gas Detector
Point Type Combustible Gas Detector Fixed Gas Detector Factory Gas Safety Monitoring

GT.HD1100 point gas detector is an intelligent transmitter that can continuously monitor the gas environment 24 hours a day in real time. The products are mainly used for the detection, display and alarm of the gas environment in petroleum, chemical, shipbuilding, steel and other industrial sites. GT-HD1100 point gas detector adopts imported sensors. According to the different types and characteristics of the detected gas, the sensor has the characteristics of high sensitivity, fast response, long life and so on. The instrument adopts flameproof design, conforms to the provisions of GB15322.1-2019, and has obtained the test report and explosion-proof certificate issued by the designated national explosion-proof inspection agency. The instrument adopts three-wire system (4~20mA) or RS485 standard signal output, which can be used jointly with the company's gas alarm controller to achieve remote gas detection and alarm control, and can also be directly connected to the DCS control system.   Advanced microprocessor technology, high working stability Imported sensors, fast reaction speed, high measurement accuracy explosion-proof structure design, die-cast aluminum shell DC power supply The range can be customized according to demand Output signal can be selected according to actual demand Optional integrated explosion-proof sound and light alarm lamp Low maintenance costs

Read More

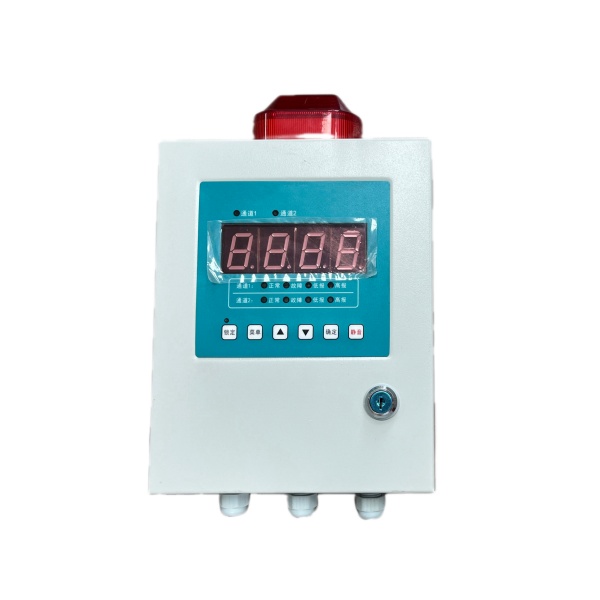

2 channel Gas Detection controller
