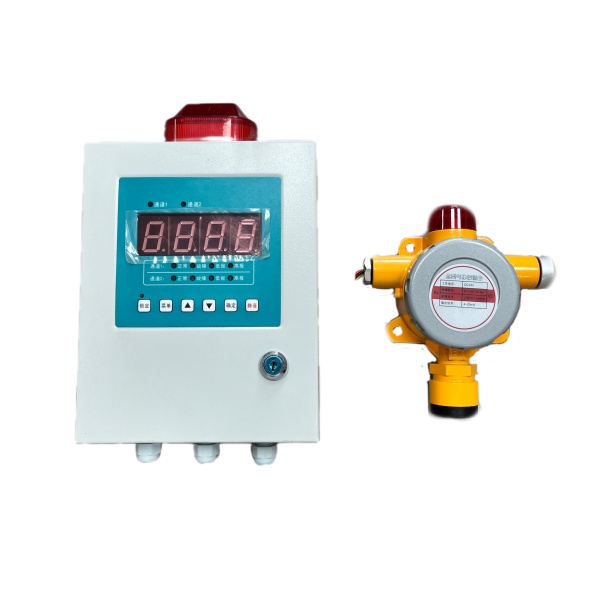

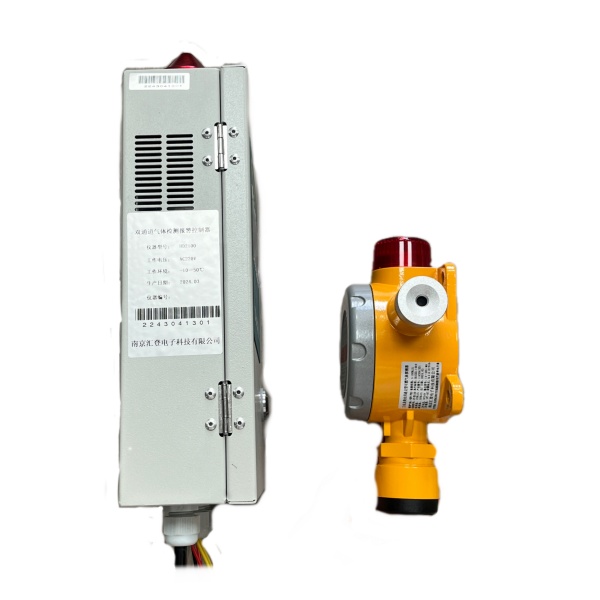

Gas Detection And Alarm Controller Display Gas Leakage Industrial Controller 1 2 4 Channel

Gas Detection And Alarm Controller Display Gas Leakage Industrial Controller 1 2 4 Channel

The gas detection and alarm controller adopts advanced microprocessor technology, which has the advantages of high sensitivity, fast response speed and stable operation. The digital tube displays the gas concentration value detected by the transmitter in real time. It has two audible and visual alarm functions, such as high and low report, and can be connected to linkage equipment and signal output.



Advanced microprocessor technology

Reliable and stable operation, high measurement accuracy

High brightness LED digital tube display

The range, accuracy, unit, high report, low report and display of each channel can be set separately

AC power supply

Sound, light alarm, lock screen, noise reduction function

Strong versatility, a variety of input and output signals to choose from

Low maintenance costs





Basic Info.

Number of channels 1 / 2 / 4
Power supply 220VAC 50Hz AC power supply
Display mode LED digital tube inspection
Working mode  long-term continuous work
Working temperature -10 ° C ∽55 ° C
Working humidity ≤90%RH
Mounting method wall-mounted
Size 360×270×100mm
Weight ≤4.6kg



Input signal

  standard three-wire system 4-20mA analog signal input
  two-wire 4-20mA analog signal input (optional)
  RS485 bus input (optional)



Output signal

  relay switching output
  3-wire system 4-20mA analog signal output (optional)
  two-wire 4-20mA analog signal output (optional)
