Customizable Fish Finder with Wifi Or Bluetooth

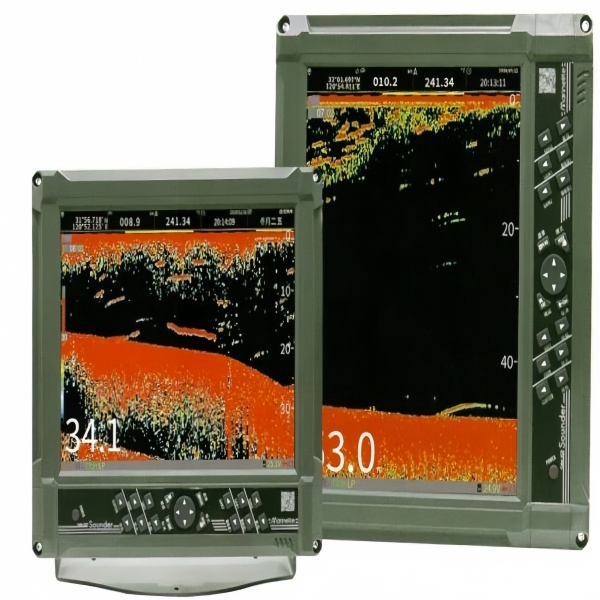

Customizable Fish Finder with Wifi Or Bluetooth

A fish finder is a device used to detect underwater fish and other aquatic life. It works by emitting sonar waves and analyzing the echoes that bounce back from objects in the water. The device displays this information on a screen, helping fishermen locate schools of fish.

Inquire Now

Product categories

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact Us

New Products

Product Details

Description

High contrast and brightness adjusting effect, suitable for use in bright light and at night;
Advanced DSP high image supersonic digital processing technology,realizing the low blind spot and the high resolution echo;
Full quick sampling, let every fish be shown;
Dual frequency display, and multiple modes of background with human design;
Stable performance, comparable with foreign brand products;
Professional design, beautiful and fashional, delicate and durable,containing multi-language menu display function;
Customizable wifi,bluetooth.

Product Parameters

Model	FP621S	FP821S	FP1021S	FP1221X	FP1521X
Display	6”	8”	10”	12”	15”
Resolution	480*640px	800*600px			1024*768px
Range	0~500m		0~2000m
Frequency	50&200KHz
Output Power	300W-600W	600W~1000W	1000W~1500W	1500W~3000W
Power Supply	DC24V(11~35V)
Power	High performance,full isolated,PWM control of power supply
Pulse length	0.12~3.0ms
Accuracy	0.1m
Sensitivity	95dBm
Language	Chinese,English,Traditional
Display mode	Dual frequency,Zoom
Expansion Mode	Auto Expansion,Manual Zoom,Bottom Lock
Sweep Speed	7steps(stop,1/8,1/4,1/2,1/1,2/1,3/1)
Display color	Echo color:5 color Backgroundcolor:black,blue
Alarm	Depth,Voltage,Temperature
Input data	IEC61162-1(NMEA0183)DPT、DBT、GLL、MTW
Ambient Temperature	-10℃~+40℃
Relative Humidity	10~90%
