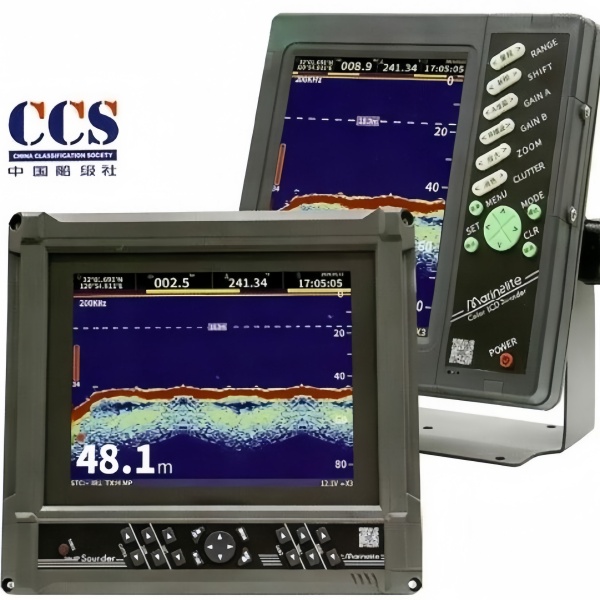

6",8",10",12" Display Marine Navigational Echo Sounder

6",8",10",12" Display Marine Navigational Echo Sounder

An echo sounder is used to monitor water depth for safe navigation and avoid collisions with submerged objects. It helps to map the seabed and detect underwater features like rocks or reefs. Additionally, it assists in ensuring proper clearance when docking or navigating in shallow waters.

Description

  • High contrast and brightness adjusting effect, suitable for use in bright light and at night;
  • Advanced DSP high image supersonic digital processing technology, realizing the low blind spot and the high resolution echo;
  • Dual frequency display, and multiple modes of background with human design;
  • Stable performance, comparable with foreign brand products;
  • Professional design, beautiful and fashional, delicate and durable,containing multi-language menu display function;
  • Meets IMO standards MSC.74(69) Annex 4.



Product Parameters

Display    6” 8” 10” 12”
Resolution  480*640px 800*600px
Frequency     200KHz/200&200KHz 200KHz/200&200KHz/50&200KHz
Processing   Digital Singal Processing(DSP)
Output Power 300W-600W 600W-1000W 1000W-2000W
Operating Voltage   DC24V(11~35V)
Sensitivity   -95dBm
Accuracy   ±1%
Lowest Blind   0.2m
Range   0.3~1000m
Depth alarm   Depth,Voltage
Expansion Mode   Dual frequency,Single frequency (high or low freq.),Zoom
Expansion Rate Auto Expansion,Manual Zoom,Bottom Lock
background  color  black,blue
Sweep Speed   7steps(stop,1/8,1/4,1/2,1/1,2/1,3/1)
SD card   Storage and replay function,software update
NMEA input   IEC61162-1(NMEA0183)RMC
NMEA output IEC61162-1(NMEA0183)DPT、DBT、GLL
Language   Simplified Chinese,English,Traditional
Serial port to print   suitable for printer DPU-414
Temperature   -10℃~+40℃
Relative  Humidity   10~90%
IDENTIFICATION ES9000 and EP series Certificated by CCS
