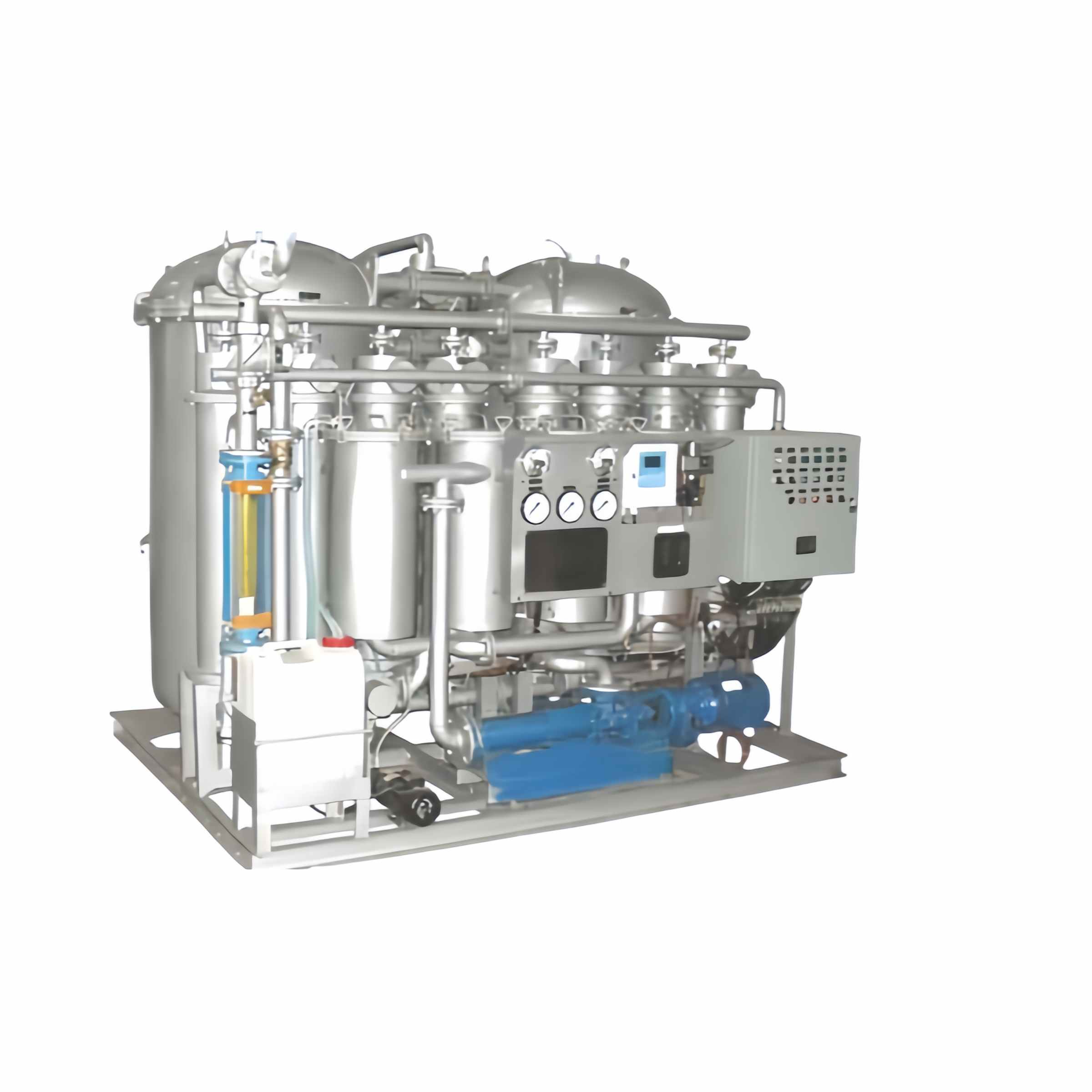

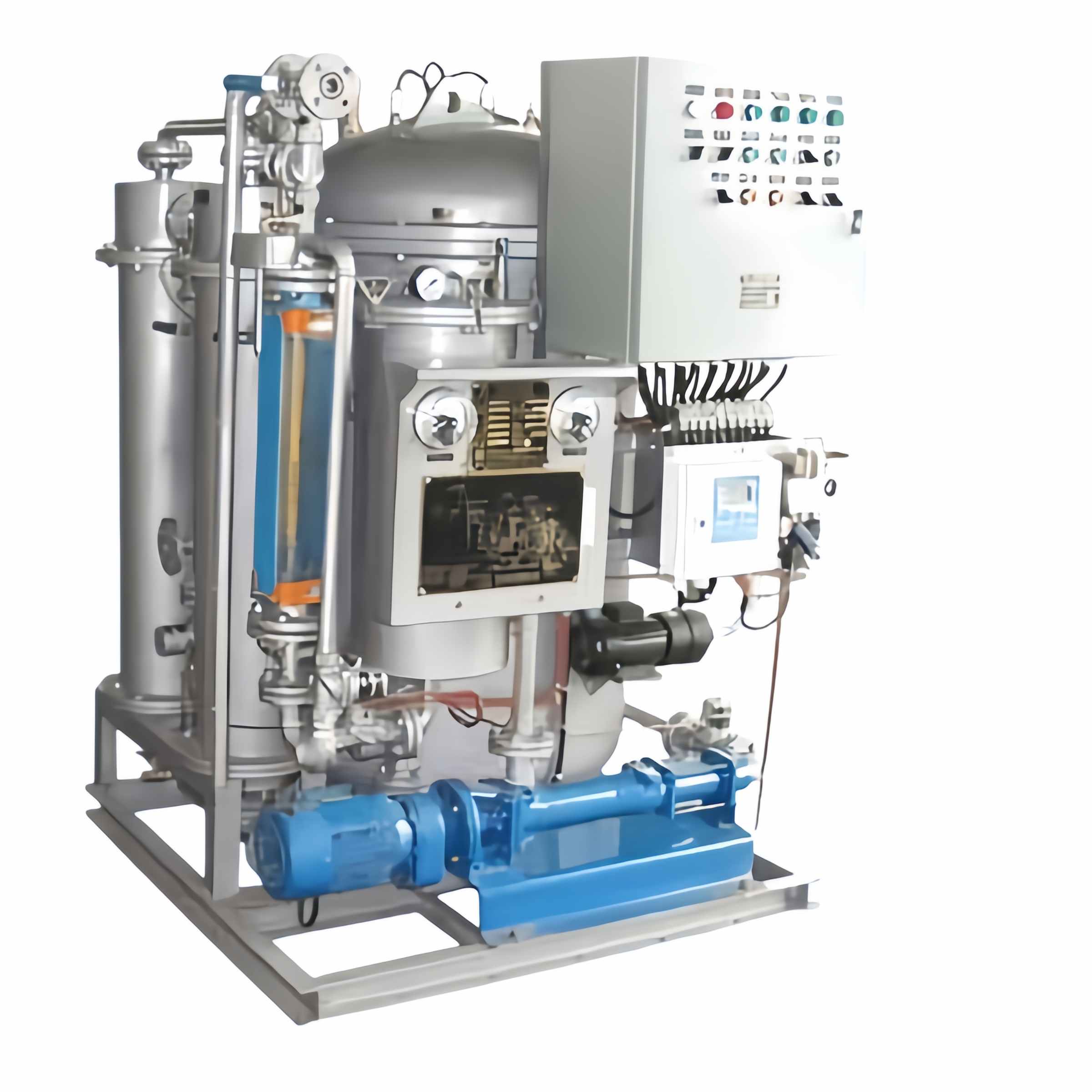

Marine oil-water separator is a device designed to remove oil from wastewater produced on ships. It ensures that the discharged water meets environmental standards. This system prevents marine pollution by separating and processing oily bilge water. Compliance with international regulations is mandatory for the use of such separators on vessels.
01 Scope of Application
Any vessel of 1.400 gross tonnage and above but less than 10,000 gross tonnage shall be fitted with approved 15ppm oil filtration equipment. Such vessels, where the ballast water retained in the fuel tank can be discharged into the sea, should also be equipped with 15ppm alarm devices.
(2) Any vessel of 10,000 gross tonnage and above shall be fitted with oil filtration equipment with a 15ppm alarm device. The system shall also be equipped with a device to ensure the automatic cessation of oil mixture discharge when the oil content of the effluent exceeds 15ppm.
02 Device configuration requirements
The design of the oil filtration equipment shall be approved by the competent authority and shall ensure that the oil content of the oil mixture discharged into the sea through the system does not exceed 15ppm. For ships with keels laid before 14 November 1978 and 30 April 1994, the requirements of the Proposed International Performance Standards and Test Codes for Oil-Water Separation Equipment and Oil Content Counting adopted by resolution A.393(X) shall apply; Ships with keels laid on or after 30 April 1994 are required to comply with the requirements of resolution MEPC.60 (33) "Guidelines and Technical Conditions for anti-pollution Equipment for Bilge Water in the Engine Room of Ships"; Ships with keels laid on or after 1 January 2005 (for domestic seaboard on or after 1 March 2007) are also required to comply with the revised Guidelines and Technical Conditions for Bilge Anti-Pollution Equipment for Ship Machinery Premises, resolution MEPC.107(49).
03 Product Parameter
Type | YWC-0.25 | YWC-0.50 | YWC-1.00 | YWC-1.50 | YWC-2.00 | YWC-2.50 | YWC-3.00 | YWC-4.00 | YWC-5.00 |
Rating Capacity (m3/h) | 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 5 |
Power of pump (kW) |
0.37 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
Electric heater power (kW) | 3 | 3 | 3 | 3 | 2×3 | 2×3 | 2×3 | 4×3 | 4×3 |
15ppm Bilge Alarm | included | included | included | included | included | included | included | included | included |
Base(channel steel) (mm) | #5 1000*600 |
#6 1100*690 |
#6 1050*1000 |
#6 1100*1130 |
#8 1900*1120 |
#8 1900*1120 |
#8 1750*1500 |
#10 2280*1700 |
#10 2280*1700 |
Height (mm) |
1250 | 1460 | 1620 | 1660 | 1700 | 1900 | 2020 | 1950 | 2000 |
Dry/wet weight (kg) | 400/550 | 600/800 | 800/1200 | 1060/1810 | 1260/2260 | 1500/2800 | 1800/3200 | 2100/3900 | 2500/4600 |
Applicable ship vessel | <1000 DWT |
1000~5000 DWT |
5~10 KDWT |
10~30 KDWT |
30~50 KDWT |
50~100 KDWT |
100~200 KDWT |
100~300 KDWT |
300KDWT above |
