Heptafluoropropane (HFC-227ea) is a clean gas fire extinguishing agent that mainly uses chemical fire extinguishing and has physical fire extinguishing effect.
Approval
Chapter 5 of International Cade for Fire Safety Systems
MSC/Circ. 848 Revised Guidelines for the Approval of Equivalent Fixed Gas Fire- Extinguishing Systems,as Referred to in Chapter II -2 of SOLAS 74 for Machinery Spaces and Cargo Pump-Rooms.
MSC 1/Circ. 1267《Amendments to Revised Guidelines for the Approval of Equivalent Fixed Gas
Fire-extinguishing Systems as Referred to in SOLAS 74 for Machinery Spaces and Cargo Pump- Rooms》
Description
Heptafluoropropane (HFC-227ea) is a clean gas fire extinguishing agent that mainly uses chemical fire extinguishing and also has the function of physical fire extinguishing; It can cause damage to precision facilities; it can reliably extinguish class B and C fires and electrical fires with a low fire extinguishing concentration; it has small storage space, high critical temperature and low critical pressure, and can be liquefied and stored at room temperature; it does not contain particles after release Or oily residue, no damage to the atmospheric ozone layer (ODP value is zero), the residence time in the atmosphere is 31 to 42 years, in line with environmental protection requirements.
Specification
|
Filling Density |
≤1.125Kg/L |
|
Design Concentration |
8.50% |
|
Spray Time(s) |
≤10 |
|
Working Temperature Range(℃) |
0-50 |
|
Nominal Working Pressure of Nozzle(MPa) |
10 |
|
Protection Radius of Single Nozzle(m) |
≤5 |
|
Fire Extinguishing Way of System |
Totally Flooding |

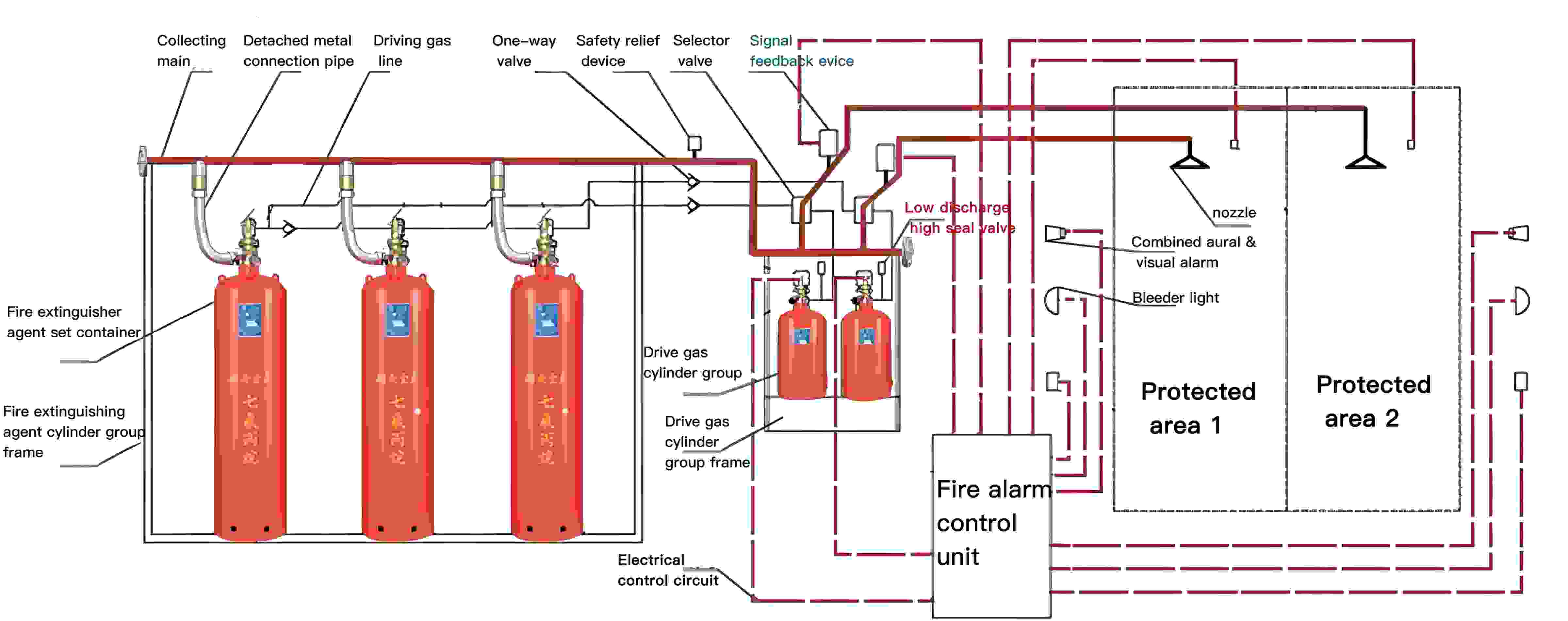

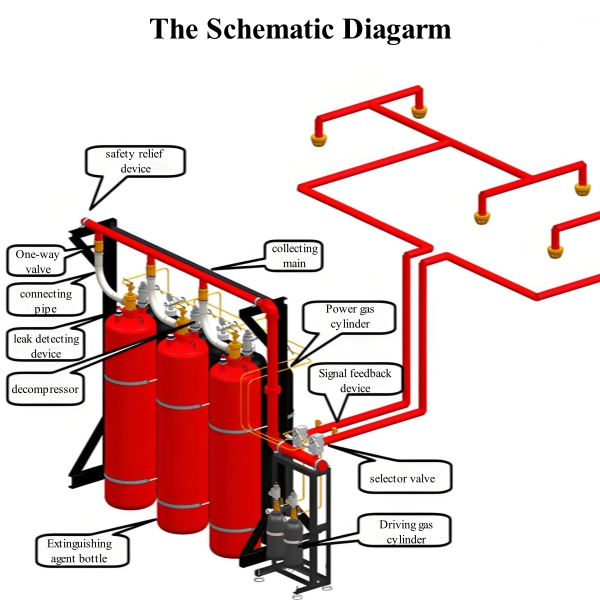

The Schematic Diagarm
