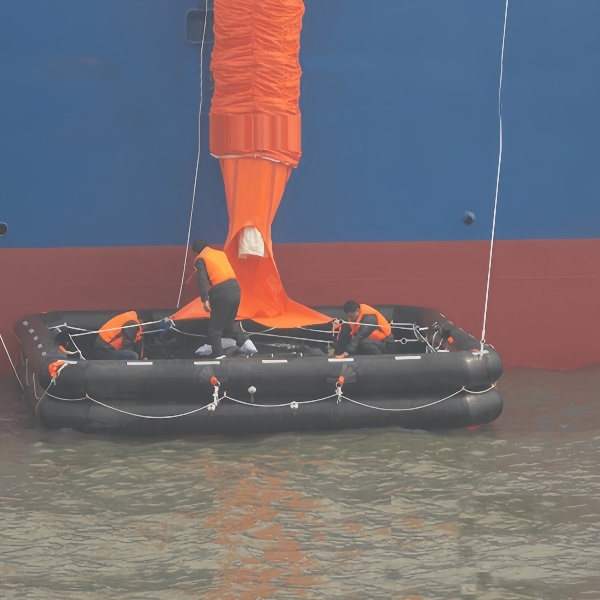

Marine Single Chute Vertical Passage Lifesaving Evacuation System
Marine emergency evacuation systems are critical safety equipment on ships, designed to provide a quick and effective escape route in the event of a disaster.
The system includes lifeboats, life rafts, escape slides and other components, and has functions such as automatic inflation and self-righting to ensure the safe escape of crew and passengers in emergenciles.
Description
Marine Saving Evacuation System is one of the ideal method for the high-sided passenger boat because the Marine Evacuation System can provide safe evacuation within 30 minutes quickly and easily.
Marine Live Saving Evacuation System we offer can protect the evacuees safety from the bad weather condition descent .Besides Inclined Single Evacuation System can also compensates for the evacuees of ships and the sea during evacuation for safe transfer to the system's liferafts.Inclined Single Marine Evacuation System is a very unique evacuation arrangement that allows people in a boat to float into a position-based league in an emergency.
The most important advantage of has a Marine Evacuation System on board is that people can enter the pontoon without being drenched in water or facing any danger, saving valuable time and thus differentiating the entire life and death.Inclined Single Chute Evacuation System is mainly used for cruise ships and other types of passenger ships.They give the Inclined Chute Passage Evacuation System another less well-known name - Single Chute Passage Evacuation System.
The Marine Evacuation System is stowed in the stainless steel container on the deck. When releasing the handle, the system will be formed into the sea automatically.Specification:10 to 22 meters.Approval: CCS.Live Saving Evacuation System has many kind of ship is as per the Safety of Life at Sea (SOLAS) standards.
Specification
|
Model |
Maximum Stowage height |
Maximum assigned |
Capacity on the platform |
Weight |
Dimension of container |
|
N-MES-VP10.0-300 |
10 |
300 |
60 |
1360 |
2300×1600×2200 |
|
HN-MES-VP11.0-300 |
11 |
1370 |
|||
|
HN-MES-VP12.0-300 |
12 |
1380 |
|||
|
HN-MES-VP13.0-300 |
13 |
1390 |
|||
|
HN-MES-VP14.0-300 |
14 |
1400 |
|||
|
HN-MES-VP15.0-300 |
15 |
1410 |
|||
|
HN-MES-VP16.0-300 |
16 |
1420 |
|||
|
HN-MES-VP17.0-300 |
17 |
1430 |
|||
|
HN-MES-VP18.0-300 |
18 |
1440 |
|||
|
HN-MES-VP19.0-300 |
19 |
1450 |
|||
|
HN-MES-VP20.0-300 |
20 |
1460 |
|||
|
HN-MES-VP21.0-300 |
21 |
1470 |
|||
|
HN-MES-VP22.0-300 |
22 |
1480 |
